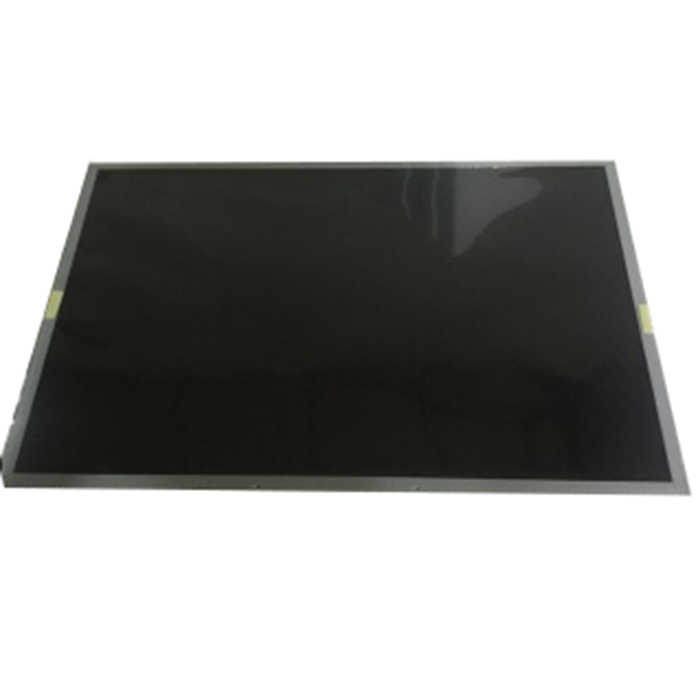

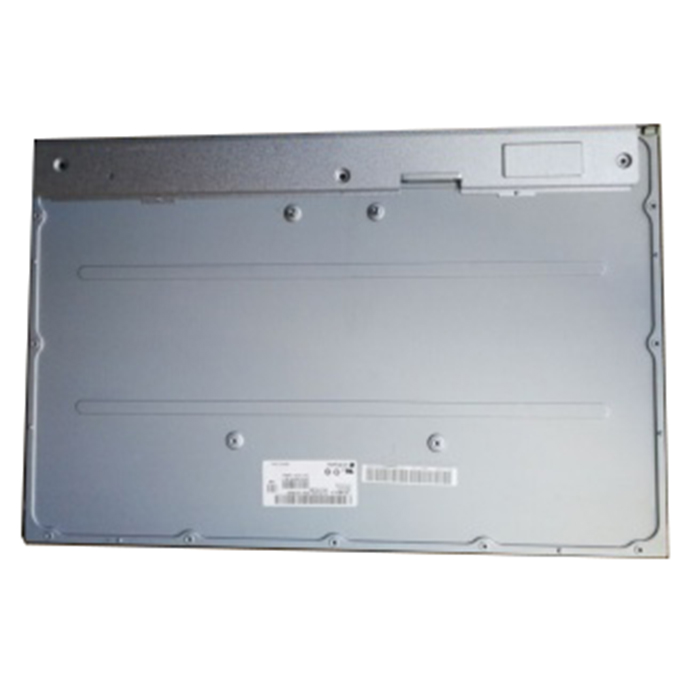

24.0 inch 1920*1200 TFT LCD Panel for Industrial Application [LM240WUB-SSA1]

Model No. LM240WUB-SSA1

►Model_No: LM240WUB-SSA1
►Brand: AUO
►Size: 24.0 inch
►Brightness: 350 cd/m2
►Resolution: 1920(RGB)*1200
►Viewing_angle: 89/89/89/89 (Typ.)(CR≥10)
►Lamp_Type: WLED
►Signal_interface: LVDS
►Application: Industrial

Best selling 24.0 inch 1920*1200 TFT LCD Panel for Industrial Application


Specifications
Part Number LM240WUB-SSA1
Size 24.0 inch
Resolution 1920(RGB)×1200   [WUXGA]
Display Mode IPS, Normally Black, Transmissive
Brightness 350 cd/m² (Typ.)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Frequency 60Hz
Lamp Type WLED , 30K hours , W/O Driver
Signal Interface 30 pins LVDS (2 ch, 8-bit) , Connector
Surface Antiglare (Haze 25%), Hard coating (3H)
 Storage Temp. -20 ~ 60 °C
Operating Temp. 0 ~ 50 °C
Weight 2.12/2.22Kgs (Typ./Max.)
Product Range

For choose more suitable screen or more information of product

please click to connect us!

Company Information
Our Factory
Basic Information

Focused upon research, producing and marketing LCD display,

JFC is specialized in full optical bonding, touch LCD Panels, outdoor

 high-brightness LCD display, and customized solution of LCD displays.

Contact Information

Shenzhen JFC Industrial Co.,Ltd
Tel: +86-755 29308809
Fax: +86-755 29451159


Add.: Room B410-420, Qinghu Technology Park, Qingxiang Road,

Longhua District, Shenzhen, 518109, China

FAQ
Q1: Any discount?
A1: We will try our best to provide you the competitive price and good service.
capacitive touch screen,samsung screen touch,touch screen panel,tablet touch screen,touch screen kiosk
Q2: Are you a manufacturer?
A2: Yes, we are a manufacturer of capacitive touch screen.
lcd repair machine,lcd screen,lcd panel,lcd display panel
Q3: What about the warranty of the products?

A3: 12months after delivery. During the warranty, if panel's original factory problems

occur, we will take back the panels with problem and replace it with new panels.

All freight will be taken by us.

lcd panel in LCD modules,lcd display,lcd display screen,lcd display in LCD modules
Q4: What about the payment terms?
A4: T/T, Paypal, or Western Union
small segment lcd custom,auo panel,lcd tv panel,lcd display panel,lcd tv
Q5: Can you accept OEM or ODM orders?

A5: Yes, we are a touch screen manufacturer, with professional structural,

QC, and technical engineers, provide OEM or ODM service.

lcd screen,lcd panel,lcd display panel,lcd oled display,capacitive multi-touch screen
Q6: How to ensure the safety of the screen in transportation?

A6: In order to keep screen in safe, plywood wooden box will be used to pack

 the LCD panels.

12.1" capacitive touch screen,usb capacitive touch screen panel,capacitive touch screen monitor
Q7: If I need customized capacitive touch screen, what can you do for me?

A7: Confirm your requirements (size, resolution, brightness, application, operation

environment), after information confirmed → design drawing → produce sample → sample

test, QC report → prepare instruction manual → ship.
