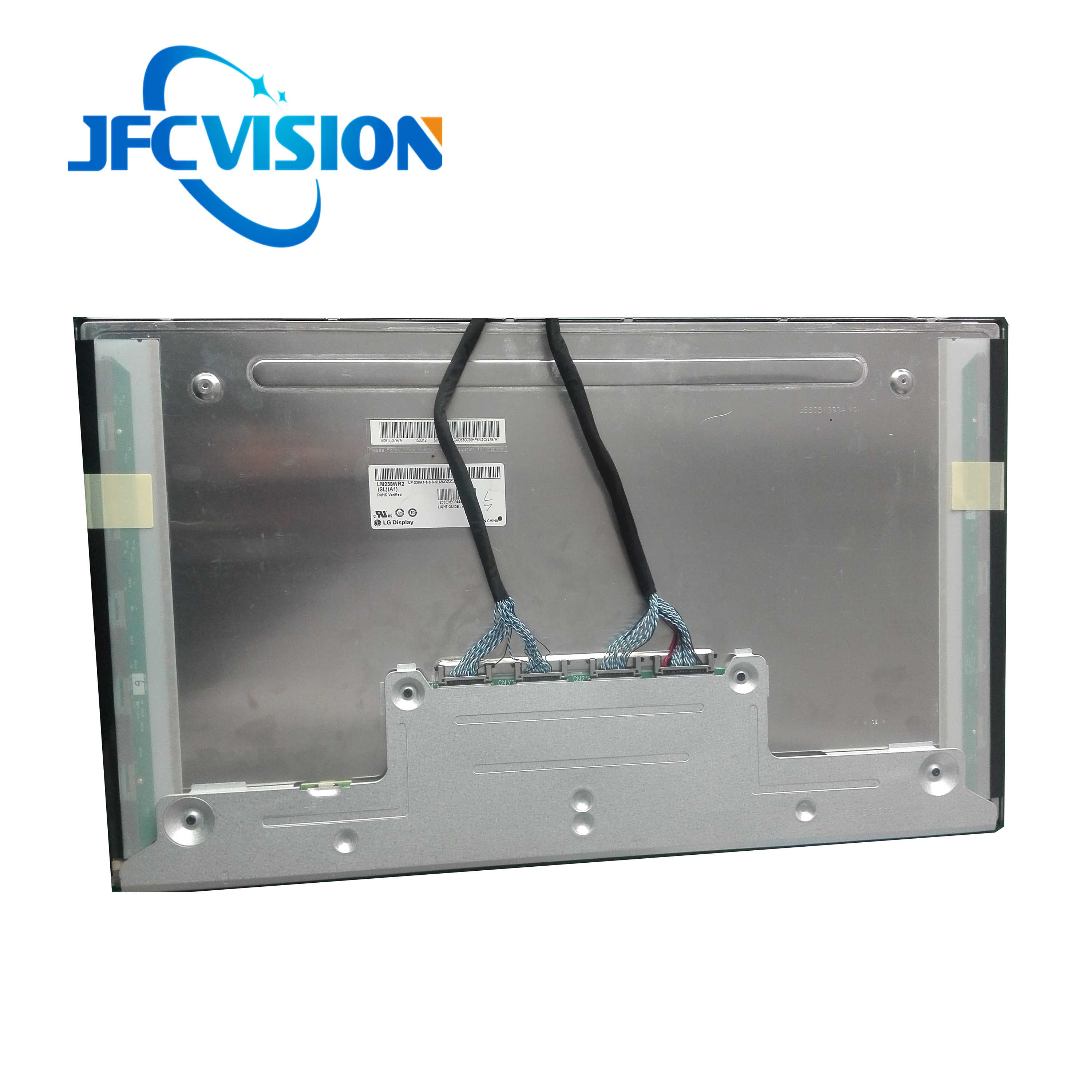

Wholesale cheap 23.8 inch industrial LCD panel for industrial [LM238WR2-SLA1]

Model No. LM238WR2-SLA1

►Model_No: LM238WR2-SLA1
►Brand: LG Display
►Size: 23.8 inch
►Brightness: 300 cd/m2
►Resolution: 3840(RGB)*2160(UHD)
►Viewing_angle: 89/89/89/89(L/R/U/D)
►Lamp_Type: WLED
►Signal_interface: LDVS
►Application: industrial

PDF DOWNLOAD

DEMO CODE ADD TO INQUIRY

BACK to LIST NEXT

Wholesale 23.8 inch UHD LCD panel ,lcd display panel designed for PC monitor

Specifications:
TFT LCD Panels
Size:	23.8 inch (diagonal)
Resolution:	3840(RGB)×2160 [UHD]
Active Area:	527.04(H)×296.46(V) mm
Brightness:	300 cd/m2 (Typ.)
View Angle:	89/89/89/89 (Typ.)(CR≥10)
Contrast Ratio:	1000 : 1 (Typ.) (TM)
Signal Type:	174 pins LVDS (8 ch, 10-bit) , Connector
Frequency:	60Hz
Backlight Lifetime:	30K hours
Voltage input:	10.0V (Typ.)
Configuration:	RGB Vertical Stripe
Environment
Operating Temperature	0 ~ 50°C
Storage Temperature	-20 ~ 60 °C

Stablity Test includes:
1). High / Low Temperature Storage Test
2). High / Low Temperature Operation Test
3). High Humidity Operation and StorageTest
4). Thermal Shock Test (non-operating)
