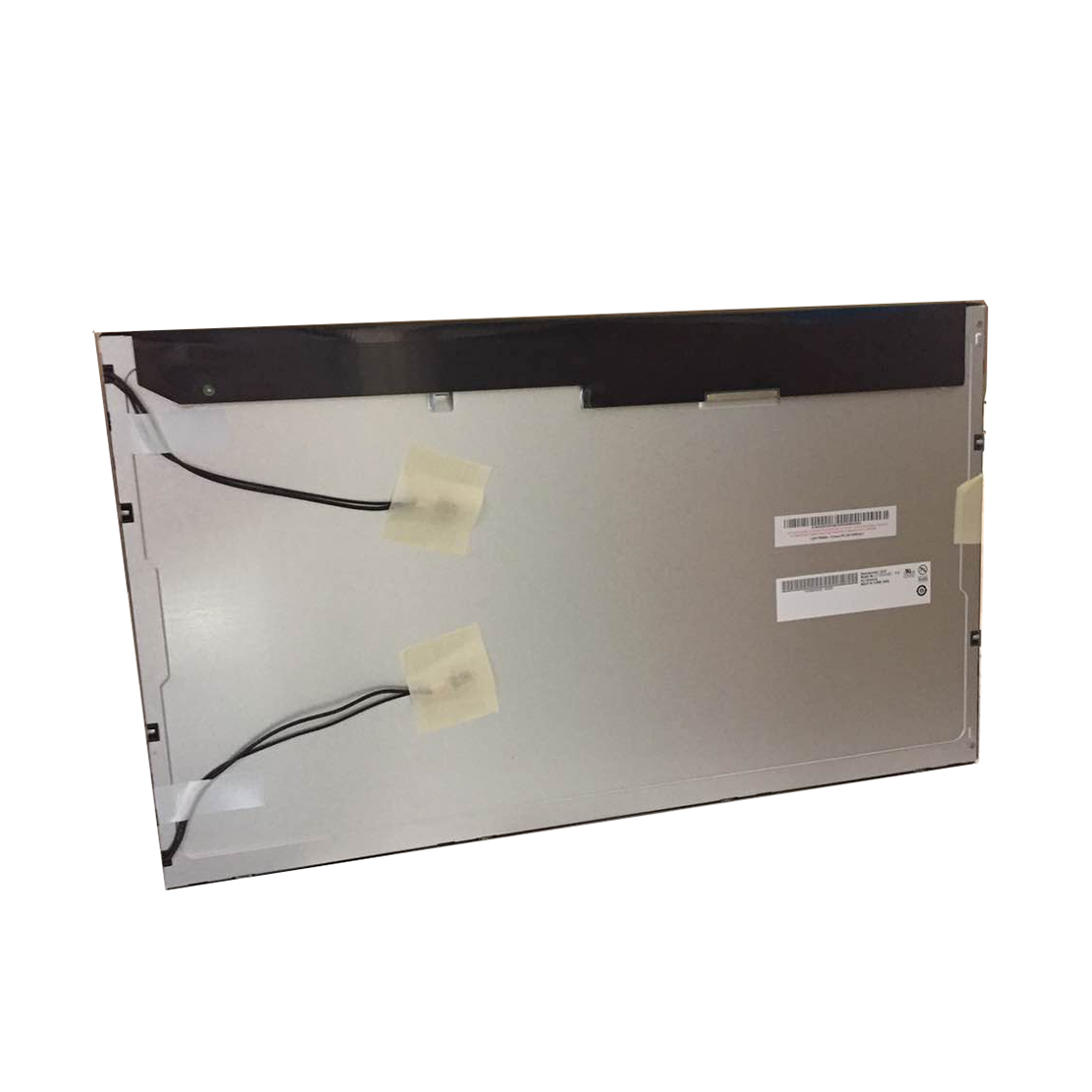

Low price 18.5 inch 1366*768 AUO industrial LCD Panel G185XW01 V0

Model No. G185XW01 V0

►Model_No: G185XW01 V0
►Brand: AUO
►Size: 18.5inch
►Brightness: 300cd/m2
►Resolution: 1366(RGB)*768 [WXGA]
►Viewing_angle: 85/85/80/80
►Lamp_Type: WLED
►Signal_interface: LVDS
►Application: Desktop Monitor

Product Description

 JFCVision  18.5 inch 1366*768 Original Indoor Commercial LCD Panels for TV Sets

Specifications:
TFT LCD Panels
Size: 18.5 inches (diagonal)
Resolution: 1366*768
Active Area: 409.8(W)×230.4(H) mm
Brightness: 250 cd/m2 (Typ.)
View Angle: 85/85/80/80 (Typ.)(CR≥10)
Contrast Ratio: 1000:1
Interface: LVDS
Frequency: 60Hz
Backlight Lifetime: 50K hours
Voltage input: 5.0V (Typ.)
Orientation: Landscape type

Environment
Operating Temperature 0 ~ 60°C
Storage Temperature  -20 ~ 60 °C
Stablity Test includes:
1). High / Low Temperature Storage Test
2). High / Low Temperature Operation Test
3). High Humidity Operation and StorageTest
4). Thermal Shock Test (non-operating)
Application

Application(TP) 3.jpg

Warranty



Warranty:
1). Warranty Period: 2 years from the date of shipping.
2). Warranty Exclusions:
*  Failure to adhere to the handling, storage, operating, assembly or other procedures and

     Parameters outlined in this delivery specification.
*  Accidental or purposeful abuse, neglect or acts of nature.
*  Breakage or physical scratches to the touch screen.


*  Other factors beyond the control of JFCVision
