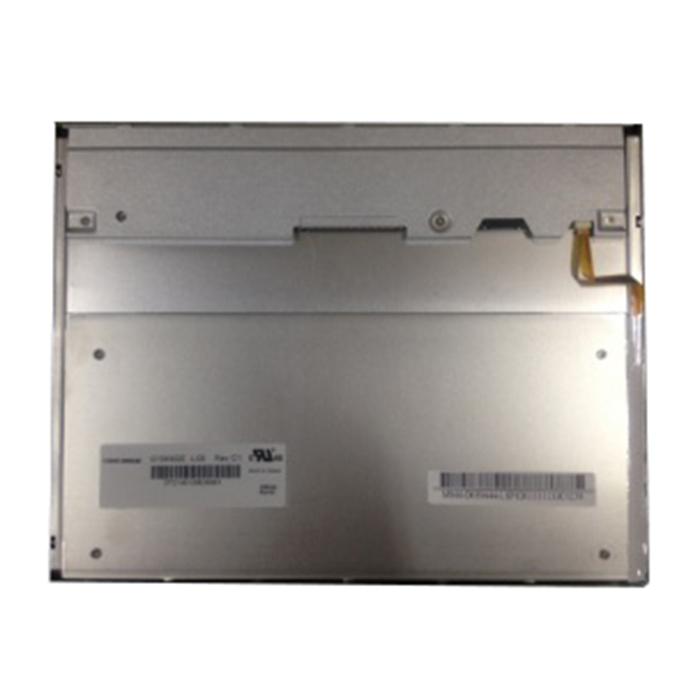

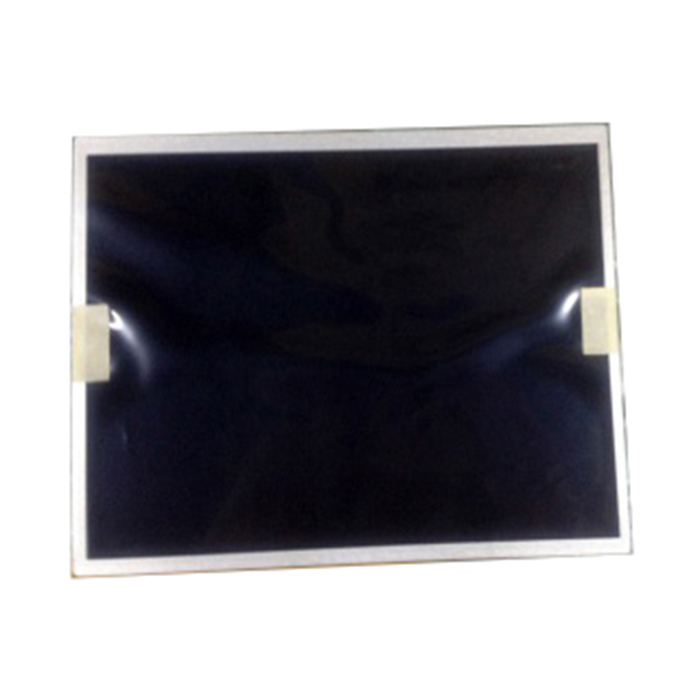

High quality 10.4 inch Industrial TFT LCD Panel with wide viwe angle for Chimei Innolux G104XGE-L05

Model No. G104XGE-L05

►Model_No: G104XGE-L05
►Brand: Chimei Innolux
►Size: 10.4 inch
►Brightness: 500 cd/m2
►Resolution: 1920(RGB)*1080 ,FHD
►Viewing_angle: 89/89/89/89(L/R/U/D)
►Lamp_Type: WLED
►Signal_interface: LDVS
►Application: Digital Signage

High quality 10.4 inch Industrial TFT LCD Panel with wide viwe angle for Chimei Innolux G104XGE-L05

Specifications
Part Number G104XGE-L05
Size 10.4 inch
Resolution 1024(RGB)×768
Display Mode IPS, Normally Black, Transmissive
Brightness  500 cd/m² (Min.)
Active Area(mm) 210.4 × 157.8 (H×V)
Frequency 60Hz
Lamp Type WLED , 50K hours , With LED Driver
Signal Interface LVDS (1 ch, 6/8-bit) , Connector , 30 pins
Arrangement RGB Vertical Stripe
 Storage Temp.  -30 ~ 80 °C
Operating Temp.  -30 ~ 70 °C
Weight 430±50g
