High quality 31.5 inch Original LG Commercial TFT- LCD panel for digital signage [LD320DUE-FHB1]

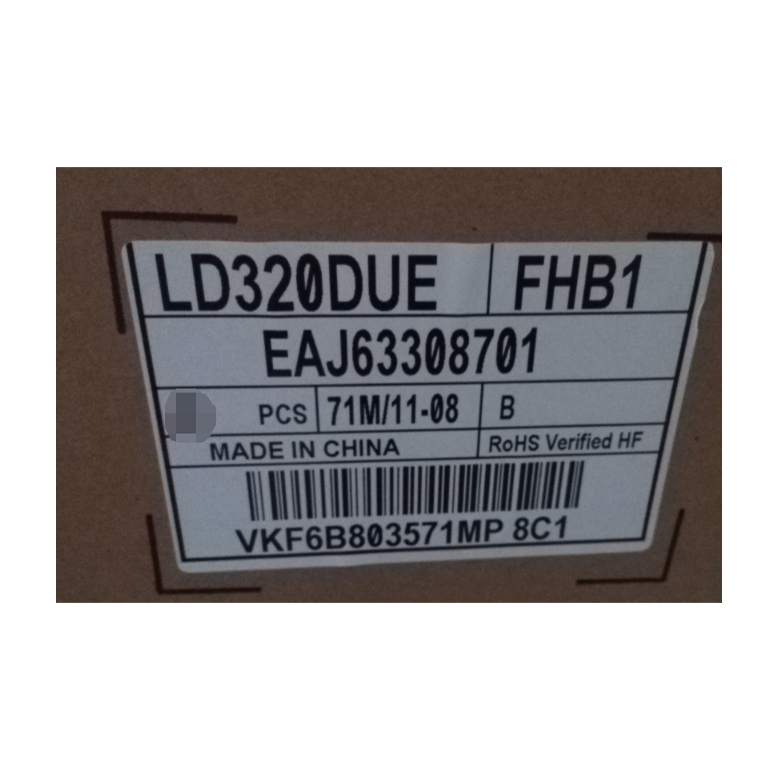

Model No. LD320DUE-FHB1

►Model_No: LD320DUE-FHB1
►Brand: LG Display
►Size: 31.5 inch
►Brightness: 400 cd/m2
►Resolution: 1920(RGB)*1080 ,FHD
►Viewing_angle: 89/89/89/89(L/R/U/D)
►Lamp_Type: WLED
►Signal_interface: LDVS
►Application: Digital Signage

PDF DOWNLOAD

DEMO CODE ADD TO INQUIRY

BACK to LIST NEXT

Product Description

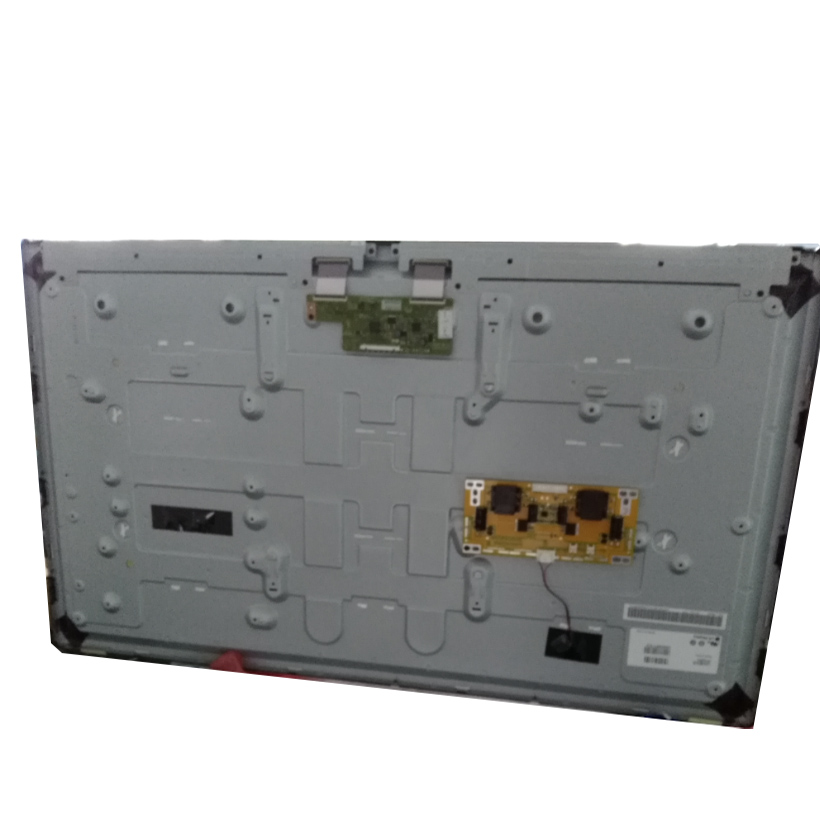

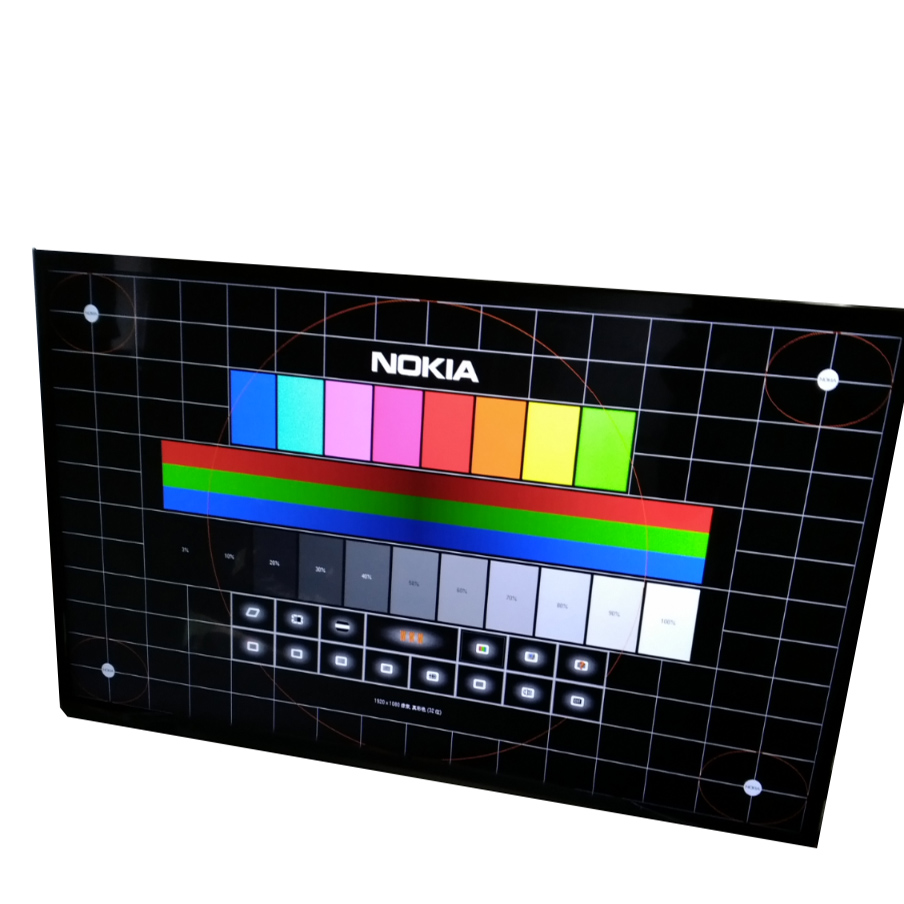

JFCVision LG Industrial 32'' TFT LCD panel

Specifications:
TFT LCD Panels
Size:	31.5 inches (diagonal)
Resolution:	1920*1080
Active Area:	698.4 × 392.85 (H×V)
Brightness:	400 cd/m2 (Typ.)
View Angle:	89/89/89/89 (Min.)(CR≥10)
Contrast Ratio:	1100:1
Interface:	LVDS
Frequency:	60Hz
Backlight Lifetime:	30K hours
Voltage input:	12.0V (Typ.)
Orientation:	Landscape/Portrait

Environment
Operating Temperature	0 ~ 60°C
Storage Temperature	-20 ~ 60 °C

Stablity Test includes:
1). High / Low Temperature Storage Test
2). High / Low Temperature Operation Test
3). High Humidity Operation and StorageTest
4). Thermal Shock Test (non-operating)

Warranty

Warranty:
1). Warranty Period: 2 years from the date of shipping.
2). Warranty Exclusions:
* Failure to adhere to the handling, storage, operating, assembly or other procedures and
Parameters outlined in this delivery specification.
* Accidental or purposeful abuse, neglect or acts of nature.
* Breakage or physical scratches to the touch screen.
* Other factors beyond the control of JFCVision
