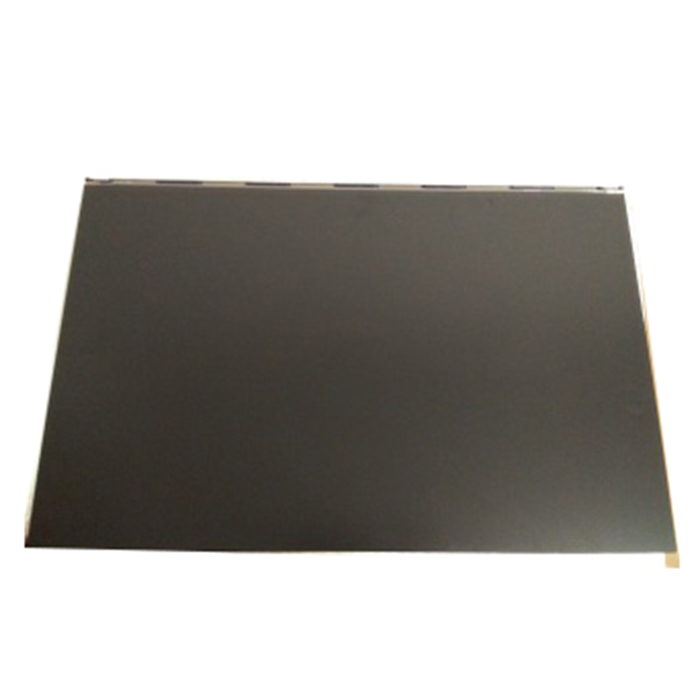

High Quality 24.0 inch 1920*1200 TFT-LCD display panels for Industrial Application [LM240WUA-SSA1]

Model No. LM240WUA-SSA1

►Model_No: LM240WUA-SSA1
►Brand: LG Display
►Size: 24 inch
►Brightness: 300 cd/m2
►Resolution: 1920(RGB)*1200 [FHD]
►Viewing_angle: 89/89/89/89(L/R/U/D)
►Lamp_Type: WLED
►Signal_interface: LDVS
►Application: Industrial Application

PDF DOWNLOAD

DEMO CODE ADD TO INQUIRY

BACK to LIST NEXT

High Quality 24.0 inch TFT-LCD display panels for Industrial Application

Specifications
Part Number	LM240WUA-SSA1
Size	24.0 inch
Resolution	1920(RGB)×1200 , WUXGA
Display Mode	IPS, Normally Black, Transmissive
Brightness	300 cd/m² (Typ.)
Viewing Angle	89/89/89/89 (Min.)(CR≥10)
Frequency	60Hz
Lamp Type	WLED , 30K hours , Without Driver
Signal Interface	LVDS (2 ch, 8-bit) , 30 pins , Connector
Surface	Antiglare (Haze 25%), Hard coating (3H)
Storage Temp.	-20 ~ 60 °C
Operating Temp.	0 ~ 50 °C
Weight	2.45/2.60Kgs (Typ./Max.)
