High Quality 19.0 inch 1280*1024 TFT LCD Panel for Industrial Application [LB190E02-SL04]

Model No. LB190E02-SL04

►Model_No: LB190E02-SL04
►Brand: LG Display
►Size: 19 inch
►Brightness: 700 cd/m2
►Resolution: 1280*1024
►Viewing_angle: 89/89/89/89(L/R/U/D)
►Lamp_Type: WLED
►Signal_interface: LDVS
►Application: Industrial Application, Medical Imaging

PDF DOWNLOAD

DEMO CODE ADD TO INQUIRY

BACK to LIST NEXT

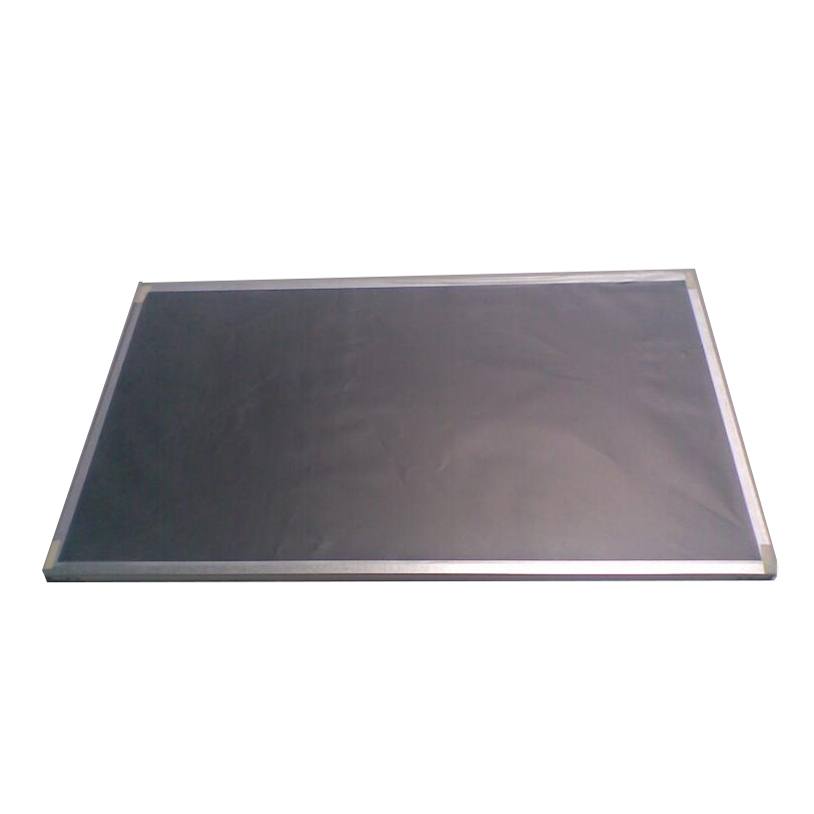

High Quality 19.0 inch 1280*1024 TFT LCD Panel for Industrial Application

Specifications
Part Number	LB190E02-SL04
Size	19.0 inch
Resolution	1280(RGB)×1024 [SXGA]
Display Mode	IPS, Normally Black, Transmissive
Brightness	700 cd/m² (Typ.)
Viewing Angle	89/89/89/89 (Min.)(CR≥10)
Frequency	60Hz
Lamp Type	WLED [4 strings] , 50K hours , W/O Driver
Signal Interface	30 pins LVDS (2 ch, 8-bit) , Connector
Surface	Antiglare, Hard coating (3H)
Storage Temp.	-20 ~ 60 °C
Operating Temp.	0 ~ 50 °C
Weight	1.55/1.60Kgs (Typ./Max.)
