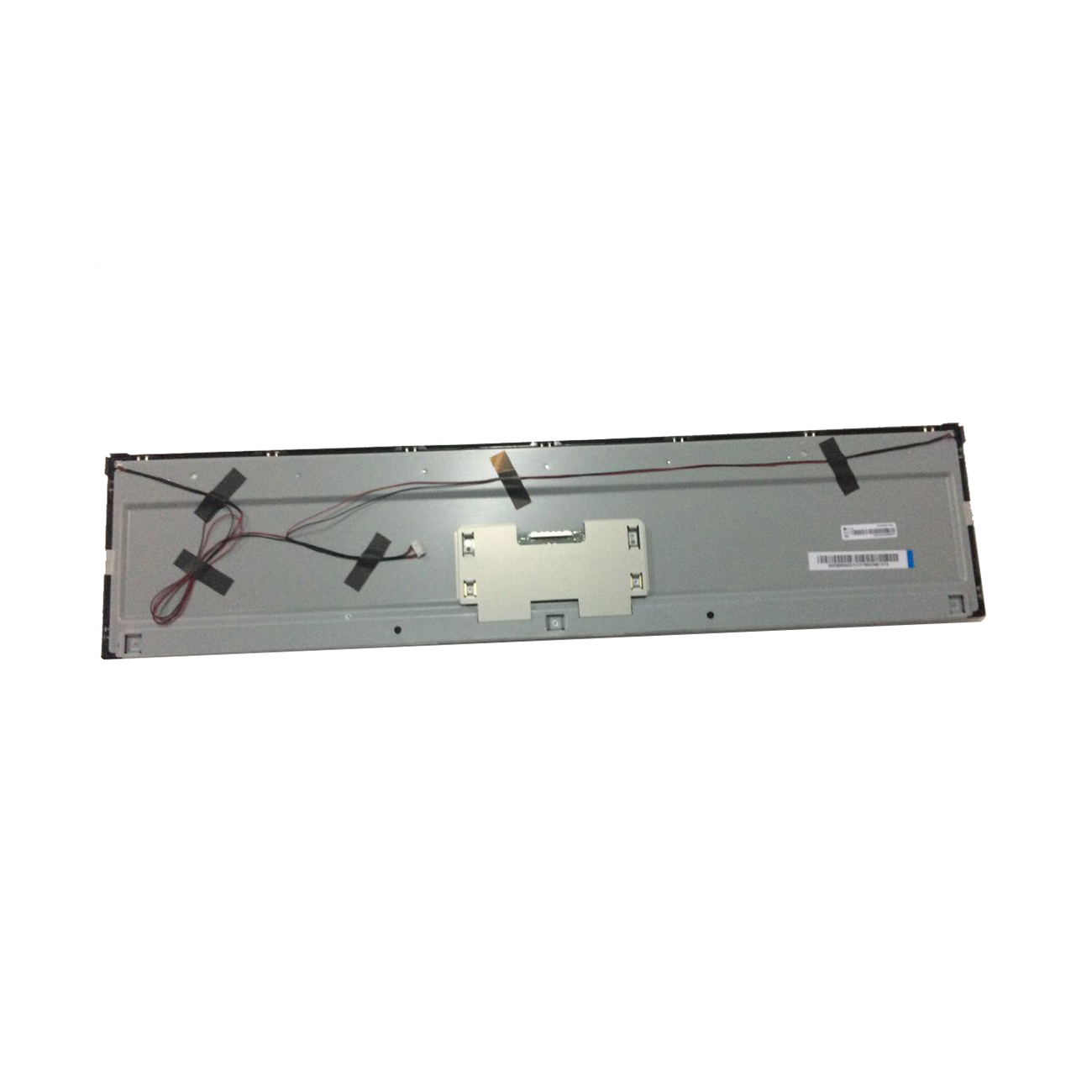

Factory price 28 inch 1920*360 TFT LCD Bar screen for transportation system

Model No. DV280FBM-NB1

►Model_No: DV280FBM-NB1
►Brand: BOE
►Size: 28.0 inches
►Brightness: 700 cd/m2
►Resolution: 1920(RGB)*360
►Viewing_angle: 89/89/89/89
►Lamp_Type: WLED
►Signal_interface: LVDS
►Application: Stretched Bar LCD Digital Signage

PDF DOWNLOAD

DEMO CODE ADD TO INQUIRY

BACK to LIST NEXT

Product Description

28.0 inch Bar screen for transportation system and Digital Signage

Specifications:
TFT LCD Panels
Size:	28.0 inches (diagonal)
Resolution:	1920*360
Active Area:	699.84mm×131.22 mm(H*V)
Brightness:	700 cd/m2 (Typ.)
View Angle:	89/89/89/89 (Typ.)(CR≥10)
Contrast Ratio:	1200:1
Interface:	LVDS
Frequency:	60Hz
Backlight Lifetime:	30K hours
Voltage input:	12.0V (Typ.)
LED driver:	included

Environment
Operation Temperature	0 ~ 50°C
Storage Temperature	-20 ~ 60 °C

Stablity Test includes:
1). High / Low Temperature Storage Test
2). High / Low Temperature Operation Test
3). High Humidity Operation and StorageTest
4). Thermal Shock Test (non-operating)

Application

Warranty

Warranty:
1). Warranty Period: 2 years from the date of shipping.
2). Warranty Exclusions:
* Failure to adhere to the handling, storage, operating, assembly or other procedures and
Parameters outlined in this delivery specification.
* Accidental or purposeful abuse, neglect or acts of nature.
* Breakage or physical scratches to the touch screen.
* Other factors beyond the control of JFCVision
