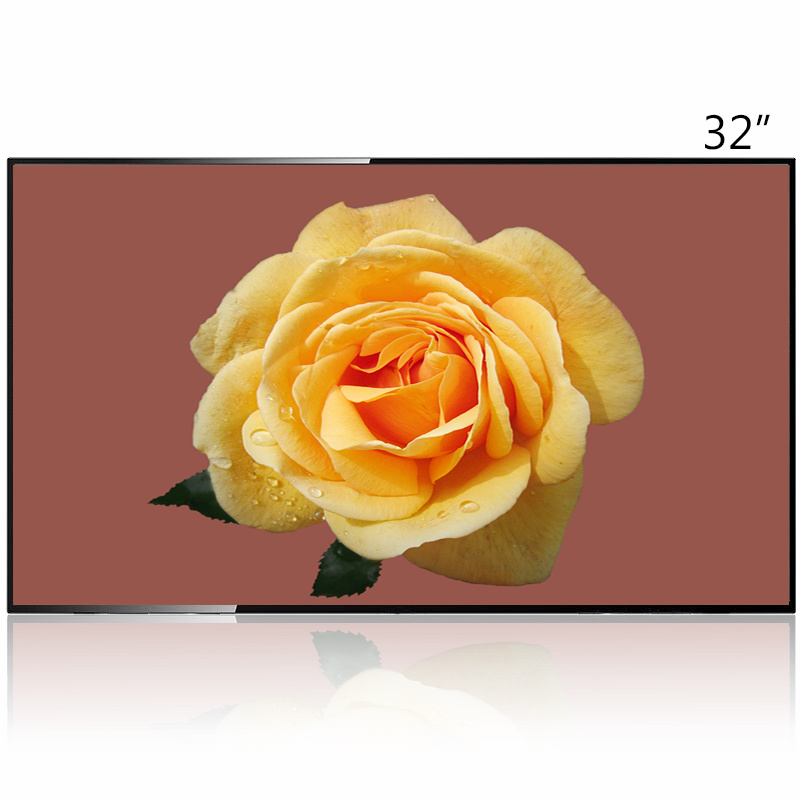

Best selling 32 inch multi touch screen with 10 points 3840*2160 resolution for digital kiosk
Model No. JFC320CFSS.V0.2
►Model_No: JFC320CFSS.V0.2
►Brand: JFCVision
►Size: 31.5 inch
►Brightness: 1500 cd/m2
►Resolution: 3840*2160
►Viewing_angle: 89/89/89/89(L/R/U/D)
►Lamp_Type: WLED
►Signal_interface: V-By-One
►Application: Interactive digital signage
►Aspect_Ratio: -
►Original_HB: -
►With_Touch_Function: Touchscreen
►With_Metal_Cover: -
Overview | |
JFCVision 31.5 inch LCD Touchscreen Features a Slim Design | |
Specifications: | |
TFT LCD Panels | |
Size: | 31.5 inches (diagonal) |
Resolution: | 3840(RGB)×2160 [UHD] |
Active Area: | 698.4×392.85 mm (H*V) |
Brightness: | 1500 cd/m2 (Typ.) |
View Angle: | 89/89/89/89 (Typ.)(L/R/U/D) |
Contrast Ratio: | 3000:1 |
Interface: | 51 pins V-by-One 8 lane |
Frequency: | 60Hz |
Backlight Lifetime: | 50K hours |
Voltage input: | 12.0V (Typ.) |
LED driver: | included |
Touch Specifications | |
Touch Type: | Capacitive Touch, with 2-glass solution technology (2GS) |
Multi Touch Points: | 10 points |
Outline Dimension | 777.12*470.6 (mm) |
Active Touch Area: | Same as LCD Panel's active area |
Touch IC: | EETI |
Touch Control Interface: | USB 2.0 |
Touch Control Board: | Included |
Systems Supportable: | Android, Windows, Linux |
Tempered Glass Surface Hardness | 7H (Typ.) (Customized) |
Transmittance: | > 85 °C |
Touch Supportable: | Finger, Glove or Passive Pen Input |
Input Voltage | 3.5V~5.5V, Typ. 5V |
Environment | |
Operation Temperature | 0 ~ 50 °C |
Storage Temperature | -20 ~ 60 °C |
Humidity: | 95% at 60 °C RH, no condensing |
Adhesive types of LCD Panel and Touch | |
Full Optical Bonding | |
Mechanical Drawings: | |
Customization Services | |
1). Cover lens is tempered glass, the size and hardness can be customized. | |
2). Black silk area size and icons can be customized. | |
Packing | |
1). BOX: 1PCS/box | |
2). Carton:TBD | |
Stablity Test includes: | |
1). High / Low Temperature Storage Test | |
2). High / Low Temperature Operation Test | |
3). High Humidity Operation and StorageTest | |
4). Thermal Shock Test (non-operating) | |
Safety Precautions: | |
1). Handling | |
*Make sure that the power cables and the communication cables are connected properly and firmly. | |
*Make sure that the sensor tails are firmly attached to the controller. | |
*The controller is firmly attached to the chassis and is grounded. | |
*The tail of the Touch Screen is connected in such a way that it is not touching objects. any metal Otherwise, | |
utilize insulators between the tail and any metal objects it may contact. This will help reduce the noise level. | |
*Never hold the touch screen by the tail. | |
*Projected Capacitive sensors and controllers can be influenced by EMI and RFI. Make sure that the | |
controller is placed far from devices such as transformers and inverters. EMI and RFI can severely | |
affect the performance of the touch screen. Grounding the controller will help reduce EMI and RFI. | |
*Wear gloves when handling the touch screen in order to prevent finger prints or stains and to avoid injury | |
due to sharp edges. | |
2). Storing and Unpacking: | |
Store the products at specified temperature and humidity range, per the Environmental Conditions | |
section of this document. | |
Store the products in the original packing materials. | |
Never place heavy objects or material on top of the touch screen. | |
Never stack touch screens on top of each other. | |
Do not hold or pull the tail to facilitate the removal of the touch screen component from the package. | |
Check and heed the “UP/DOWN” mark prior to opening the package. | |
3). Maintaining: | |
* Do not use any cleaners with chemicals that can corrode glass or damage the touch screen permanently. | |
When cleaning the touch screen, use a soft, lint free cloth to prevent scratches and contamination. | |
Avoid using sharp/hard objects. | |
* Always wear a grounded wrist strap while handling the touch screen and controller. | |
* For high visual clarity, clean the touch screen periodically to remove fingerprints and foreign objects. | |
* Do not press the touch screen with extreme force. | |
* Avoid the use of sharp / hard objects on the touch screen. | |
* Keep sensor tails away from sharp objects and handle them with care. | |
Warranty: | |
1). Warranty Period: 2 years from the date of shipping. | |
2). Warranty Exclusions: | |
*Failure to adhere to the handling, storage, operating, assembly or other procedures and | |
Parameters outlined in this delivery specification. |
|
* Accidental or purposeful abuse, neglect or acts of nature. | |
* Breakage or physical scratches to the touch screen. | |
* Other factors beyond the control of JFCVision |
