JFC215CMSS.V1
Model No. JFC215CMSS.V1
►Model_No: JFC215CMSS.V1
►Brand: JFCVision
►Size: 21.5 inch
►Brightness: 250 cd/m2
►Resolution: 1920(RGB)*1080 ,FHD
►Viewing_angle: 89/89/89/89(L/R/U/D)
►Lamp_Type: WLED
►Signal_interface: LDVS
►Application: KIOSK
►Aspect_Ratio: -
►Original_HB: -
►With_Touch_Function: Touchscreen
►With_Metal_Cover: -
| Overview | |

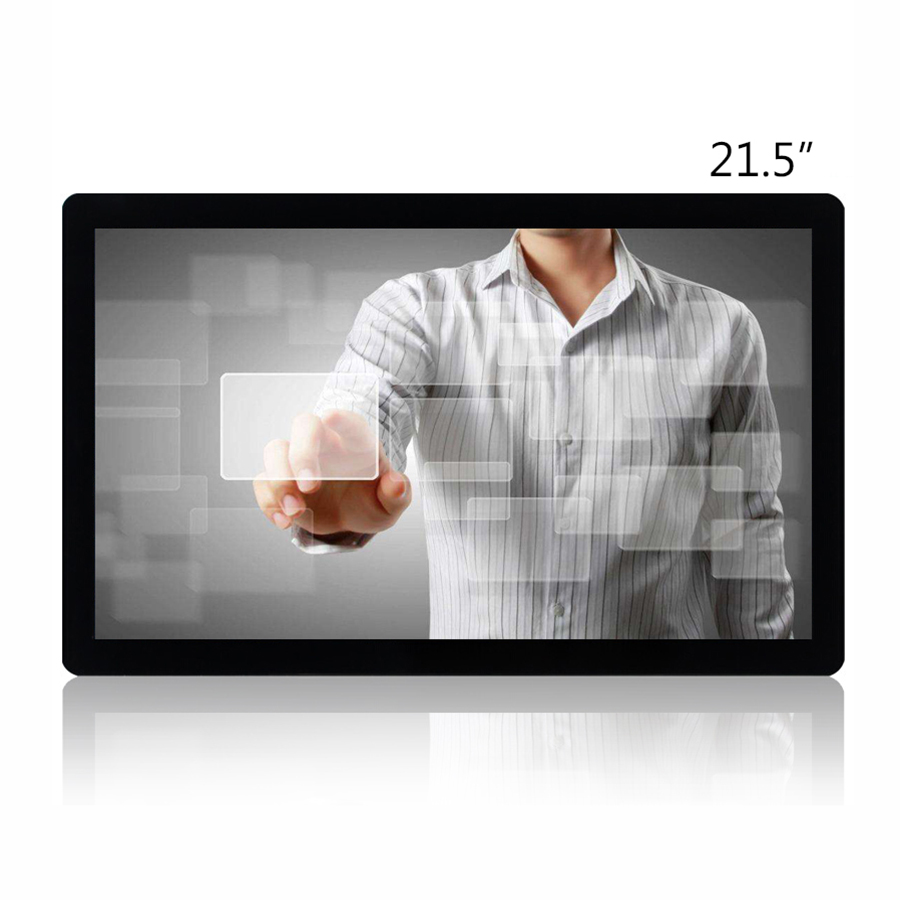

| JFCVision 21.5 inch LCD Touchscreen Features a Slim Design | |
| Specifications: | |
| TFT LCD Panels | |
| Size: | 21.5inches (diagonal) |
| Resolution: | 1920*1080 |
| Active Area: | 476.064*267.786 mm (H*V) |
| Brightness: | 250 cd/m2 (Typ.) |
| View Angle: | 89/89/89/89 (Typ.)(L/R/U/D) |
| Contrast Ratio: | 3000:1 |
| Interface: | LVDS (2 ch, 8-bit) , 30 pins |
| Frequency: | 60Hz |
| Backlight Lifetime: | 50K hours |
| Voltage input: | 5.0V (Typ.) |
| LED driver: | Not included |
| Touch Specifications | |
| Touch Type: | Capacitive Touch, with 2-glass solution technology (2GS) |
| Multi Touch Points: | 10 points |
| Outline Dimension | 532.5*328.6 (mm) |
| Active Touch Area: | Same as LCD Panel's active area |
| Touch IC: | ILI |
| Touch Control Interface: | USB 2.0 |
| Touch Control Board: | Included |
| Systems Supportable: | Android, Windows, Linux |
| Tempered Glass Surface Hardness | 7H (Typ.) (Customized) |
| Transmittance: | > 85 °C |
| Touch Supportable: | Finger, Glove or Passive Pen Input |
| Input Voltage | 3.5V~5.5V, Typ. 5V |
| Environment | |
| Operation Temperature | 0 ~ 50°C |
| Storage Temperature | -20 ~ 60°C |
| Humidity: | 95% at 60 °C RH, no condensing |
| Adhesive types of LCD Panel and Touch | |
| 3M fasten | |
| Mechanical Drawings: | |
|
|
| Customization Services | |
| 1). Cover lens is tempered glass, the size and hardness can be customized. | |
| 2). Black silk area size and icons can be customized. | |
| Packing | |
| 1). BOX: 1PCS/box | |
| 2). Carton:TBD | |
| Stablity Test includes: | |
| 1). High / Low Temperature Storage Test | |
| 2). High / Low Temperature Operation Test | |
| 3). High Humidity Operation and StorageTest | |
| 4). Thermal Shock Test (non-operating) | |
| Safety Precautions: | |
| 1). Handling | |
| * Make sure that the power cables and the communication cables are connected properly and firmly. | |
| * Make sure that the sensor tails are firmly attached to the controller. | |
| * The controller is firmly attached to the chassis and is grounded. | |
| * The tail of the Touch Screen is connected in such a way that it is not touching objects. any metal Otherwise, | |
| utilize insulators between the tail and any metal objects it may contact. This will help reduce the noise level. | |
| * Never hold the touch screen by the tail. | |
| * Projected Capacitive sensors and controllers can be influenced by EMI and RFI. Make sure that the | |
| controller is placed far from devices such as transformers and inverters. EMI and RFI can severely | |
| affect the performance of the touch screen. Grounding the controller will help reduce EMI and RFI. | |
| * Wear gloves when handling the touch screen in order to prevent finger prints or stains and to avoid injury | |
| due to sharp edges. | |
| 2). Storing and Unpacking: | |
| Store the products at specified temperature and humidity range, per the Environmental Conditions | |
| section of this document. | |
| Store the products in the original packing materials. | |
| Never place heavy objects or material on top of the touch screen. | |
| Never stack touch screens on top of each other. | |
| Do not hold or pull the tail to facilitate the removal of the touch screen component from the package. | |
| Check and heed the “UP/DOWN” mark prior to opening the package. | |
| 3). Maintaining: | |
| * Do not use any cleaners with chemicals that can corrode glass or damage the touch screen permanently. | |
| When cleaning the touch screen, use a soft, lint free cloth to prevent scratches and contamination. | |
| Avoid using sharp/hard objects. | |
| * Always wear a grounded wrist strap while handling the touch screen and controller. | |
| * For high visual clarity, clean the touch screen periodically to remove fingerprints and foreign objects. | |
| * Do not press the touch screen with extreme force. | |
| * Avoid the use of sharp / hard objects on the touch screen. | |
| * Keep sensor tails away from sharp objects and handle them with care. | |
| Warranty: | |
| 1). Warranty Period: 2 years from the date of shipping. | |
| 2). Warranty Exclusions: | |
| * Failure to adhere to the handling, storage, operating, assembly or other procedures and | |
|
Parameters outlined in this delivery specification. |
|
| * Accidental or purposeful abuse, neglect or acts of nature. | |
| * Breakage or physical scratches to the touch screen. | |
|
* Other factors beyond the control of JFCVision |
|
