55 inch 4K LCD Panel LTI550FN01 Supplier

Model No. LTI550FN01

►Model_No: LTI550FN01
►Brand: Samsung
►Size: 55 inch
►Brightness: 500 cd/m² (Typ.)
►Resolution: 3840(RGB)×2160, UHD
►Viewing_angle: 89/89/89/89 (Typ.)(CR≥10)
►Lamp_Type: WLED , 50K hours , With LED Driver
►Signal_interface: V-by-One 16 lane, 92 pins , Connector
►Application: Digital Signage

PDF DOWNLOAD

DEMO CODE ADD TO INQUIRY

BACK to LIST NEXT

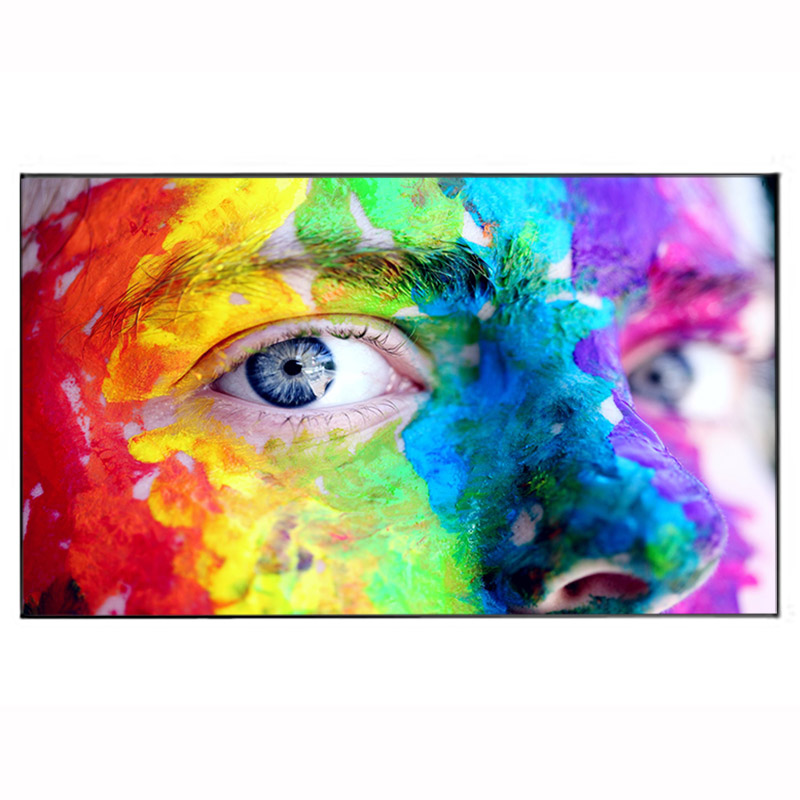

4K 55 inch LCD Panel LTI550FN01 Suppiler, 55 inch LCD Module for Commercial Display, PID, Digital Signage LTI550FN01-N LCD panel.jpg

LTI550FN01-N is a color active-matrix liquid crystal display(LCD)that uses amorphous silicon TFT (Thin Film Transistor) as switching components.
This model is composed of a TFT LCD panel, a driver circuit, and a backlight unit.

This 55.0” model has a resolution of 3840x2160 pixels(16:9)can display up to 16.7 Million colors with the wide viewing angle of 89 or higher in all directions.

Specifications	Panel Model	LTI550FN01
	Size	55 inch
	Resolution	3840(RGB) ×2160, UHD
	Brightness	500 cd/m² (Typ.)
	Aspect Ratio	16:10 (W: H)
	Surface	Antiglare (Haze 25%), Hard coating (2H)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
	Contrast Ratio	4000:1 (Typ.) (TM)
	Response Time	6(Typ.)(G to G)
	Signal Interface	V-by-One 16 lane, 92 pins, Connector
	Frequency	120Hz
	Lamp Type	WLED, 50K hours, With LED Driver
	Application	Digital Signage
Original Package	Carton	20 pcs/carton
Original Package	Carton	Size: 1440×1120×769 mm(without pallet plastic)
