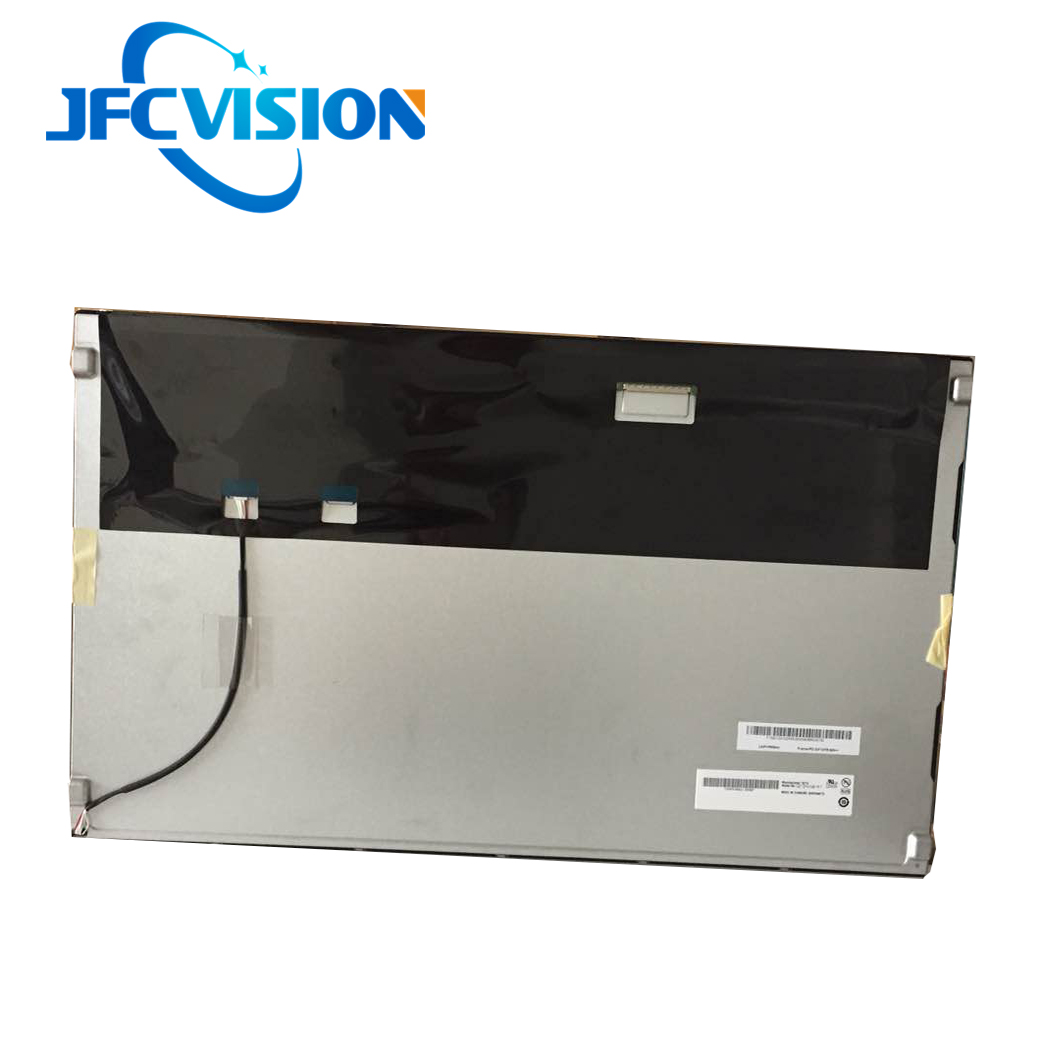

Lower price AUO 21.5 inch 1920*1080 Industrial TFT lcd display

Model No. G215HVN01.1 S03

►Model_No: G215HVN01.1 S03
►Brand: AUO
►Size: 21.5 inch
►Brightness: 250 cd/m2
►Resolution: 1920(RGB)*1080 [FHD]
►Viewing_angle: 89/89/89/89 (Typ.)(CR≥10)
►Lamp_Type: WLED
►Signal_interface: TFT
►Application: Desktop Monitor

Product Description

 JFCVision  23.0 inch 1920*1080 Industrial  capacitive touch screen

Specifications:
TFT LCD Panels
Size:  21.5 inches (diagonal)
Resolution: 1920*1080
Active Area:  476.64mm*268.11mm (H*V)
Brightness: 250 cd/m2 (Typ.)
View Angle: 89/89/89/89 (Typ.)(CR≥10)
Contrast Ratio: 5000:1
Interface: LVDS
Frequency: 60Hz
Backlight Lifetime: 30K hours
Voltage input: 5.0V (Typ.)
Orientation: Landscape type

Environment
Operating Temperature 0 ~ 60°C
Storage Temperature  -20 ~ 60 °C
Operation  Humidity

5~ 90%RH

Storage Humidity

5~ 90%RH

Stablity Test includes:
1). High / Low Temperature Storage Test
2). High / Low Temperature Operation Test
3). High Humidity Operation and StorageTest
4). Thermal Shock Test (non-operating)
Application

Application(TP) 3.jpg

Warranty


Warranty:
1). Warranty Period: 2 years from the date of shipping.
2). Warranty Exclusions:
*  Failure to adhere to the handling, storage, operating, assembly or other procedures and

     Parameters outlined in this delivery specification.
*  Accidental or purposeful abuse, neglect or acts of nature.
*  Breakage or physical scratches to the touch screen.


*  Other factors beyond the control of JFCVision
